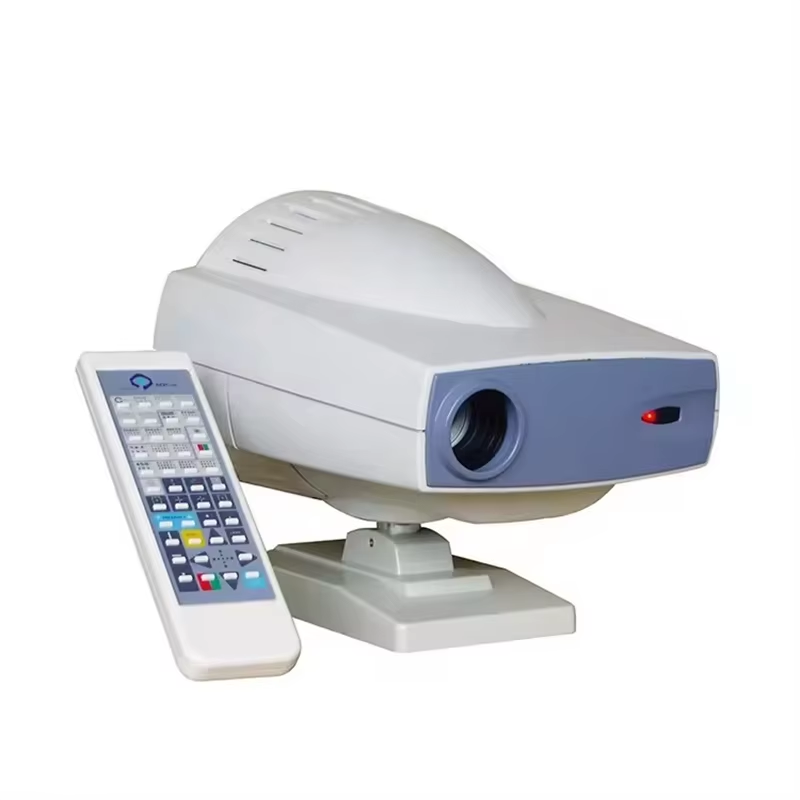

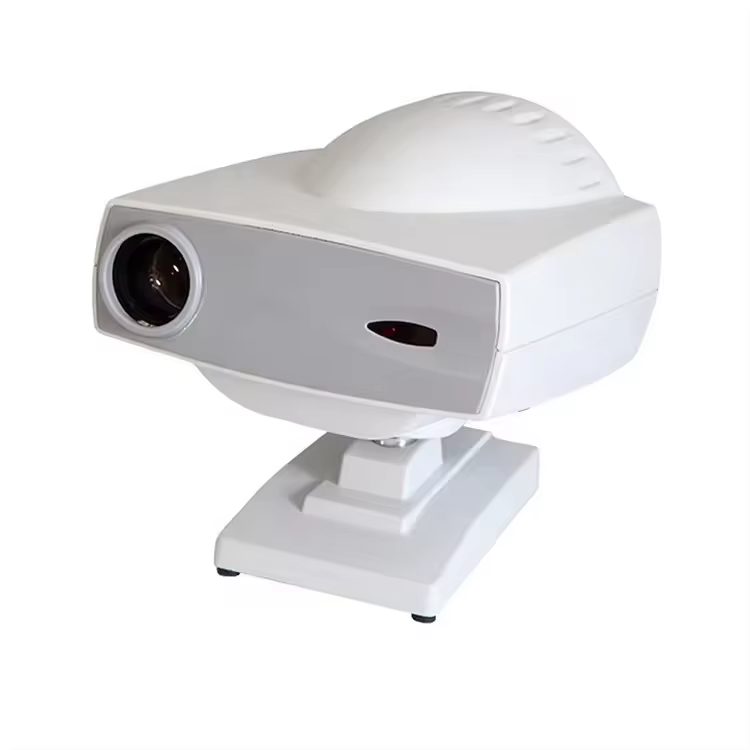

Projector
Provide 30 types of clear irons with different functions,and can program iron groups per specific needs.
Produce more precise measurement results in shortertime by remote controller and fast toggling icon.
Applying red/green & polarized iron test sheet,binocular eyesight and binocular balance.
lrons can be displayed in predefined sequence byprogramming.
Display single icon by multi-functionmask plate.
| Projection Distance | 1.5 m ~ 6 m |
|---|---|
| Projection Magnification | 30× (at 5 m) |
| Chart | 30 different patterns |
| Speed of Chart Conversion | 1 chart / 0.03 s |
| Mask |
1 open, 5 horizontal lines, 8 vertical lines, 21 single letters, 1 red/green |
| Speed of Mask Conversion | 1 mask / 0.03 s |
| Program | 2 sets, each program up to 30 steps |
| Light Source |
12V, 50W Halogen lamp 3W / 3.2V LED lamp |
| Auto-off Function | After 10 minutes idle time |
| Power Source | AC 220V, 50Hz or 110V, 60Hz |
| Power Consumption | 80VA |
| Carton Size | 48 × 48 × 35 cm |
| Dimensions | 30 × 23 × 24.5 cm |
| Weight | G.W.: 9 kg / N.W.: 6 kg |
