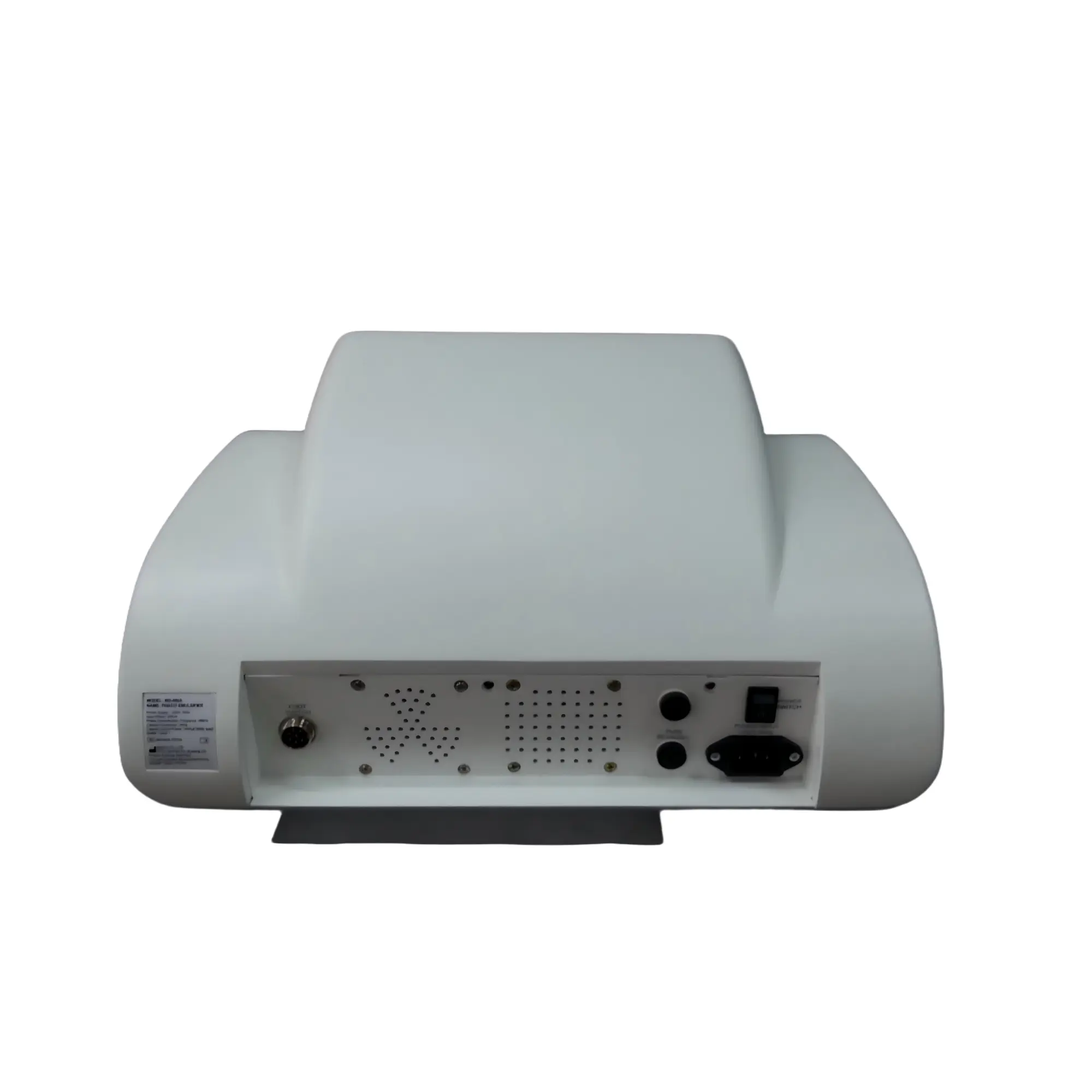

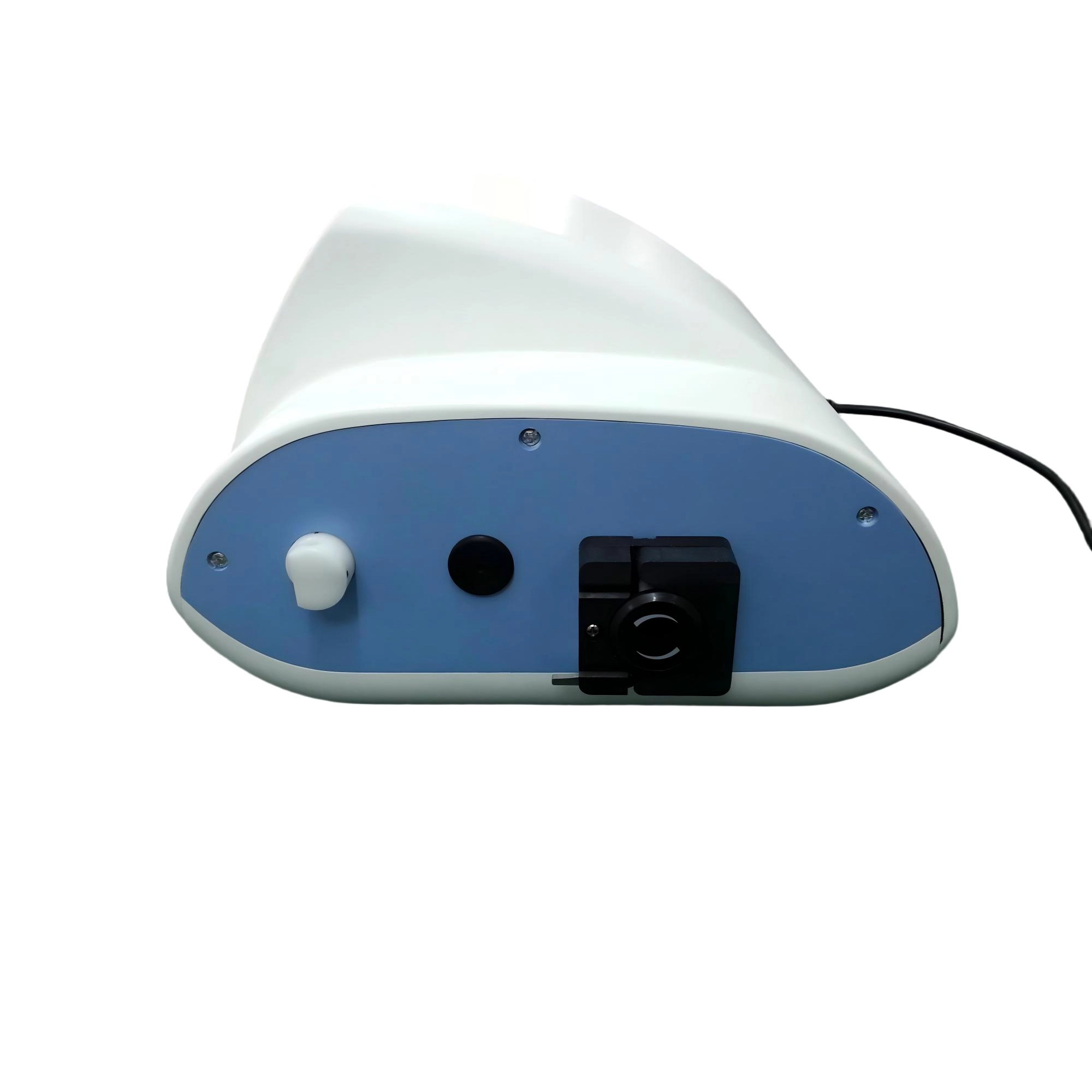

Phaco system / Phaco unit MD-480A
All parts of the system are fully controlled and monitored by Microprocessor Technology.
Smoothly and efficiently controlling the emulsifier process with digital frequency tracing technology of handpiece
Easy operation and user-fiendly interface with large touch screen TFT and functional menu
Up to 10 sets of parameters preset meets diferent requirements and simplifies the surgery operation-
Auto test checks tubing and handpiece problems (e.g.: block or leakage)
The peristaltic pump gives complete control of aspiration flow rate as well as freedom from anterior chamber shallowing. This way can give stronger sution when working in 1/A
Built-in vitrectomy and cautery.
Intelligent voice reminder
| Parameter | Specification |
|---|---|
| Ultrasonic Emulsification (U/S) | |
| Frequency | 40 kHz |
| Functional modes | Continuance, Pulse, Linear, Burst |
| Continuance (power range) | 0–100% |
| Pulse (frequency range) | 1–99 Hz |
| Linear (control) | Power linearly controlled by foot switch, 0–100% |
| Burst stopping time | 1.5–0 s |
| Working time | 5–100 ms |
| Maximum vacuum | 500 mmHg |
| Maximum flux rate | 40 ml/min |
| Irrigation / Aspiration (I/A) | |
| Flux rate | 0–40 ml/min |
| Reflux rate | 20 ml/min |
| Max vacuum | 500 mmHg |
| Vitrectomy (VIT) | |
| Cutting power source | Air pump |
| Cutting frequency | 20–600 / min |
| Mode | Single cut |
| Maximum vacuum | 500 mmHg |
| Maximum flux rate | 40 ml/min |
| Cautery | |
| Maximum power | 10 W ± 20% (200 Ω) |
| Type | Bipolar |
| Power preset range | 0–100% |
