| The measuring range of spherical mirror | -25 m⁻¹~+25 m⁻¹ |
|---|---|
| The measuring range of column mirror | -9.99m⁻¹~9.99m⁻¹ |
| The measurement range of gradual addition of light | -9.99m⁻¹~9.99m⁻¹ |
| The measuring range of corneal contact lens | -20m⁻¹~+20m⁻¹ |
| The step size of top focal degree measurement | 0.01m⁻¹,0.06m⁻¹,0.12m⁻¹',0.25m⁻¹ |
| The cylinder lens measurement range of axial angle of scattered | 0°~ 180°, and the step size is 1° |
| The measuring range of base angle of prism | 0°~ 360°, and the step size is 1° |
| Prism measurement range | Horizontal 0~20cm/m, step size 0.0lcm/m |
| The diameter of the measuring lens | ф10mm~ф100mm |
| The center thickness of the measuring lens | < 20mm |
| The measurement range of pupil distance | 40mm~82mm and step size: 0.25mm |
| The measurement range of pupil height difference PH | 0mm~50mm, and step size: |
| The length of lens leg can be measured | 0mm~160mm |
| The UV | 0~ 100%, step size of anti-UV transmittance is 1% |
| Host power supply | DC12V, 48W |
| Power adapter | input AC100V-240V, 50Hz-60Hz; output DC 12V, 48W |
| Shape size | 413mm*170mm*217mm. |
| Weight | 3.8Kg |
| Screen | 800×480 color screen, full screen touch |
| Printer | thermal printing, print paper width 57mm |
| External interface | power interface, USB interface |
Auto Lensmeter

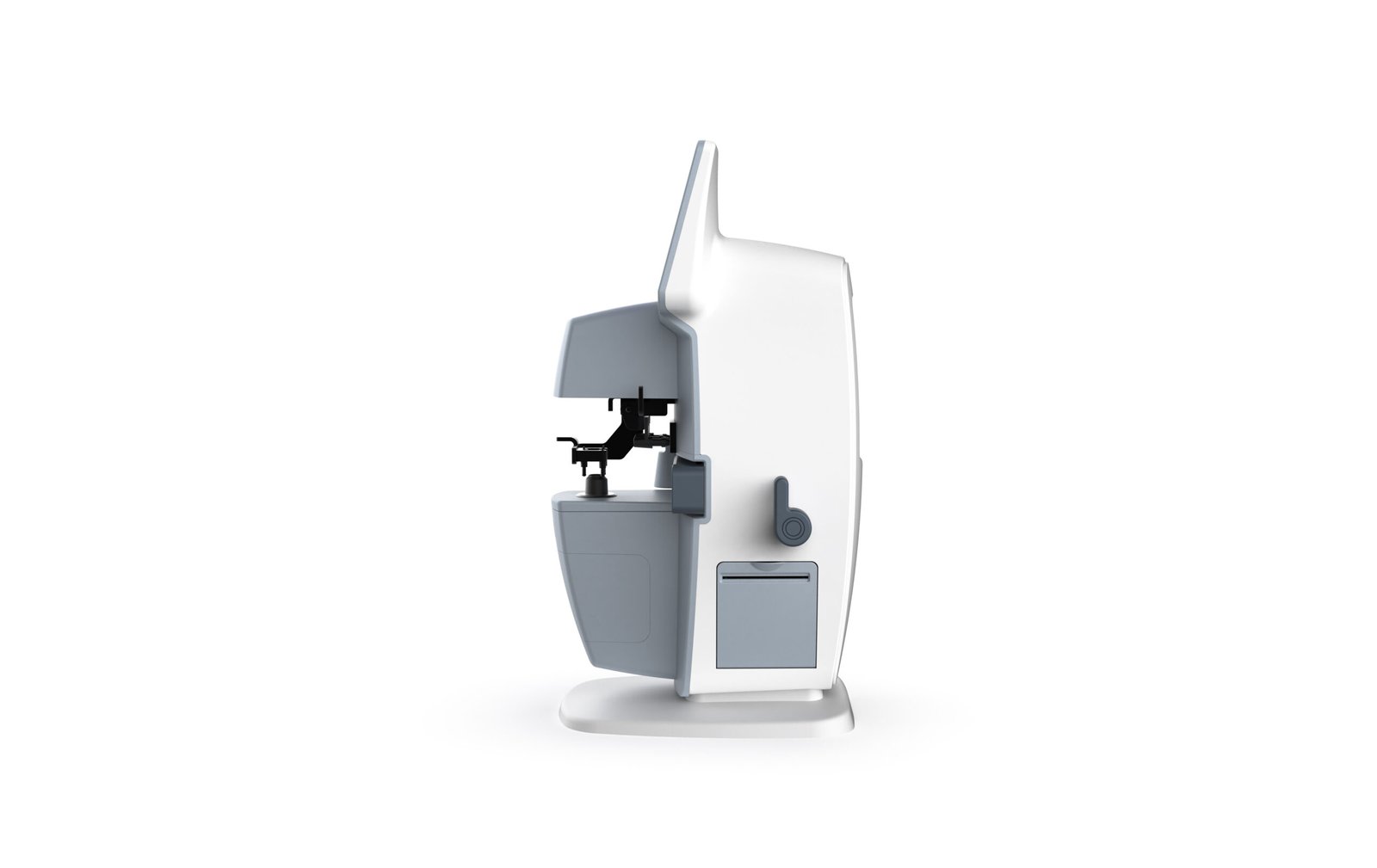

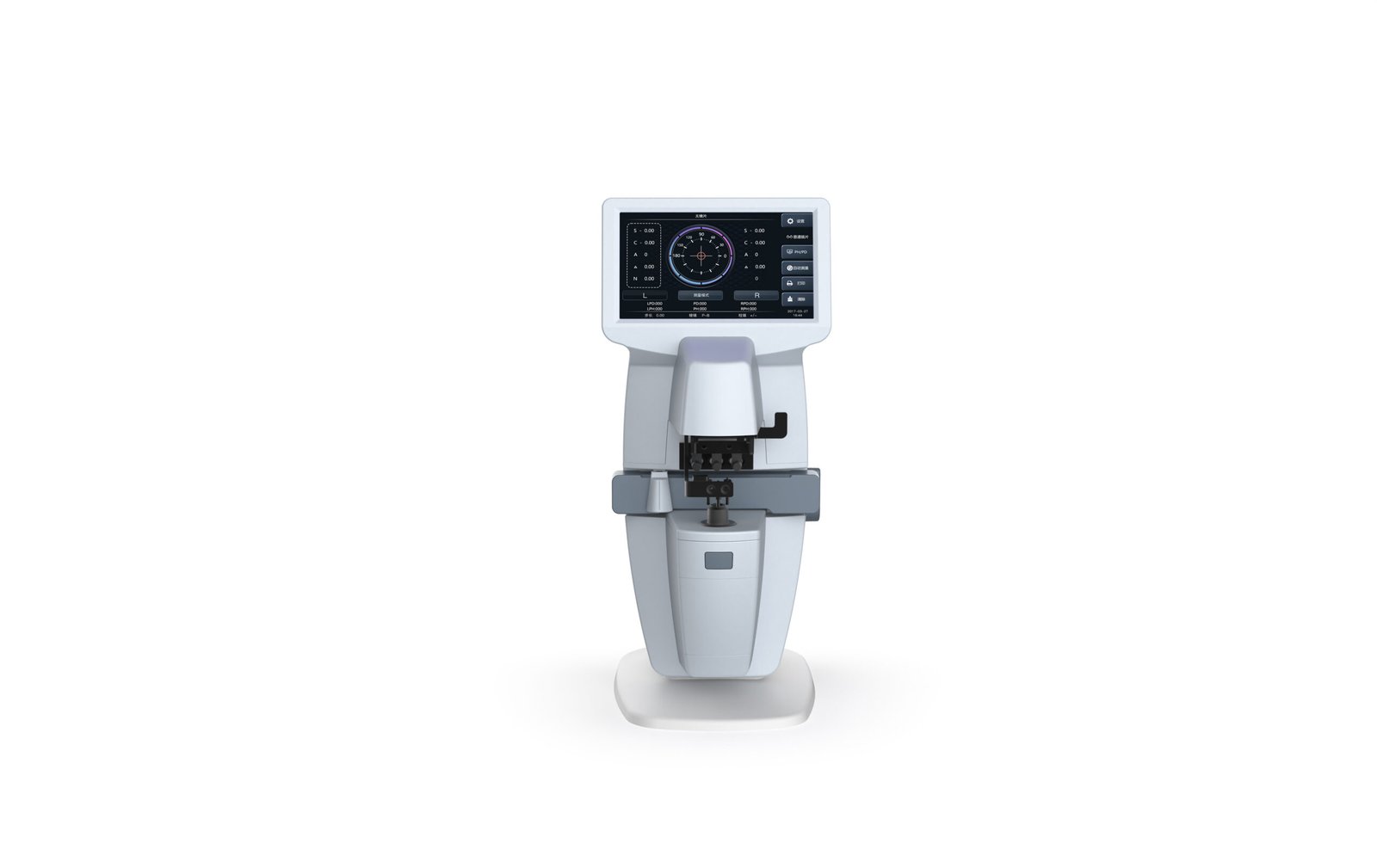

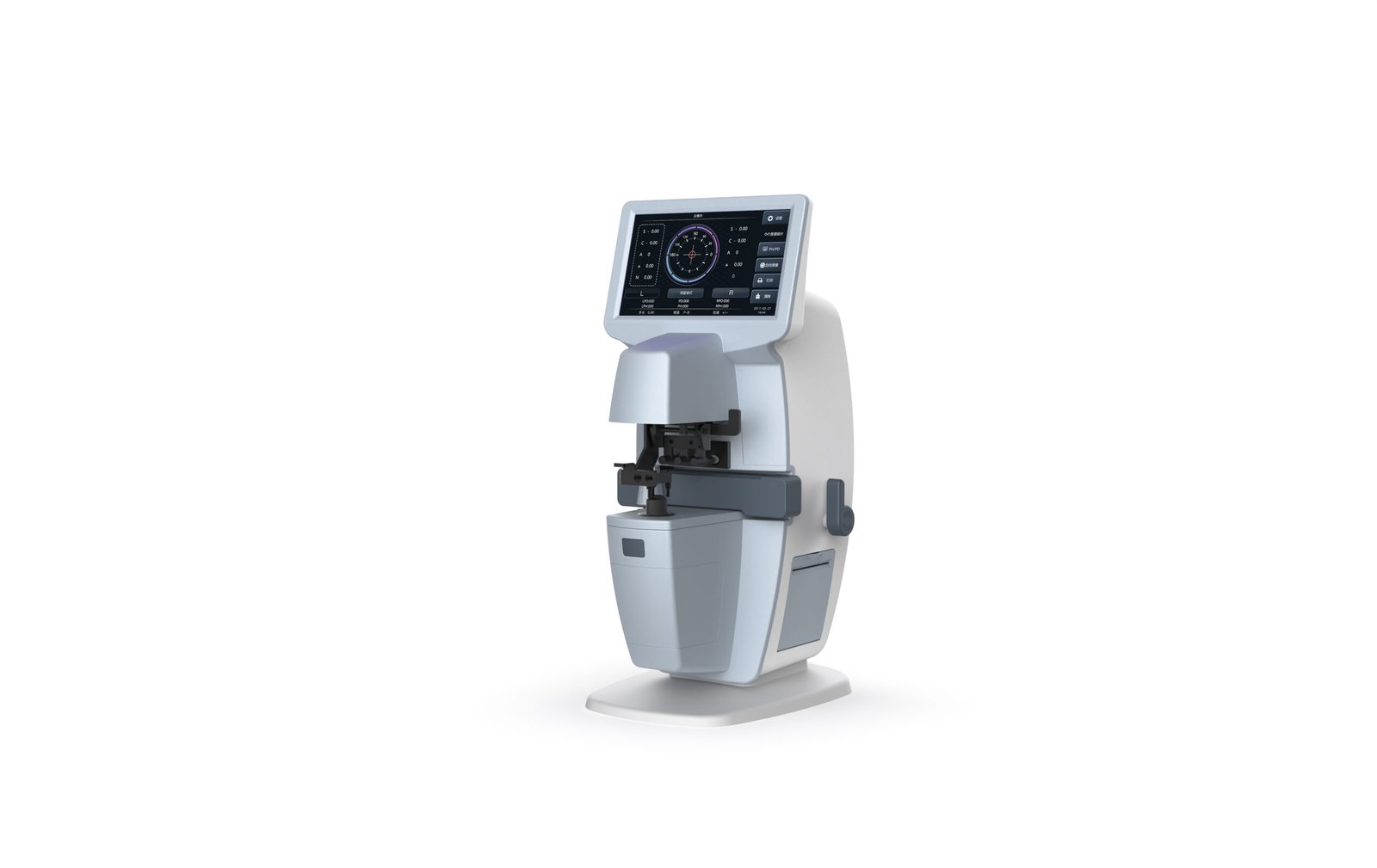

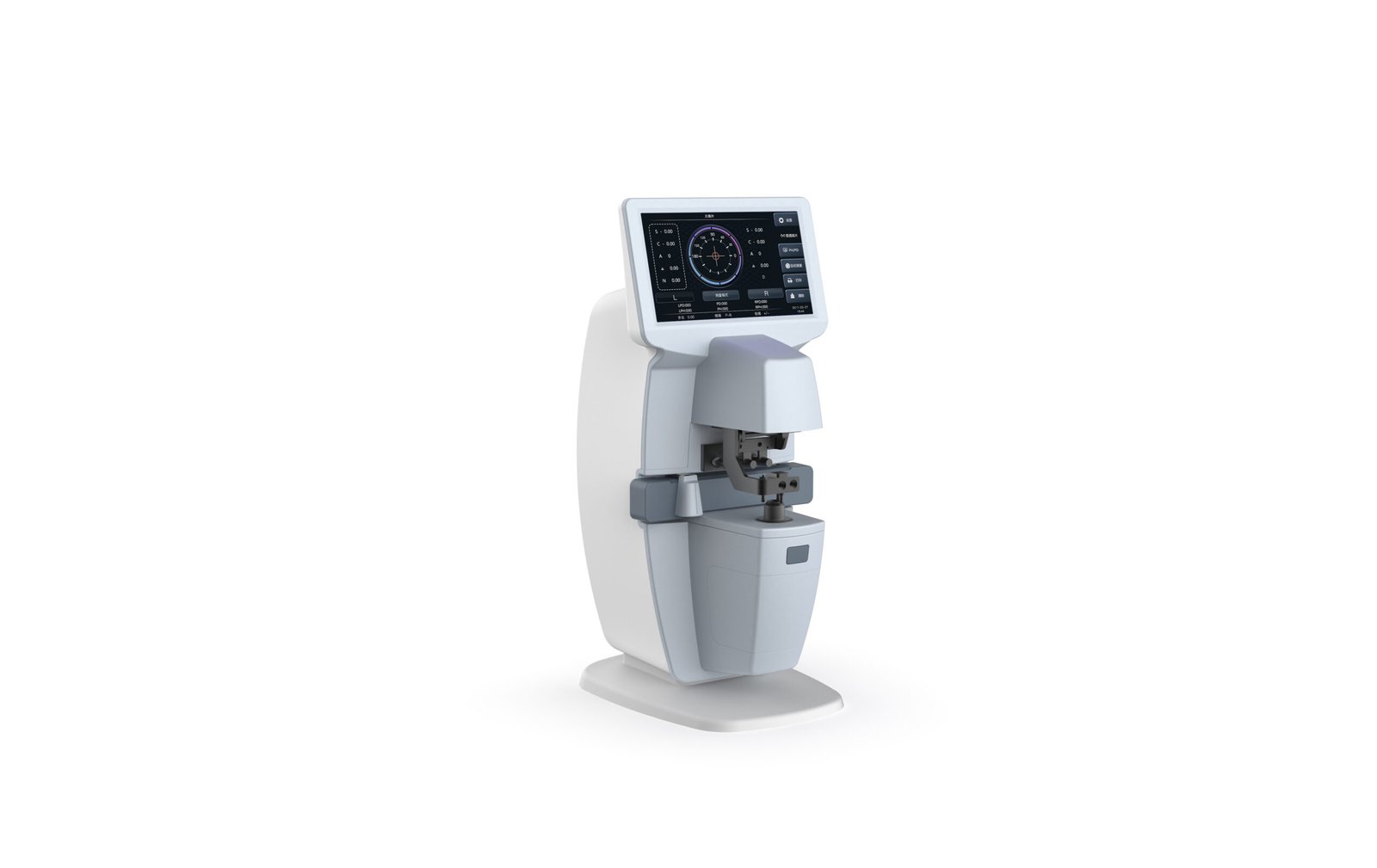

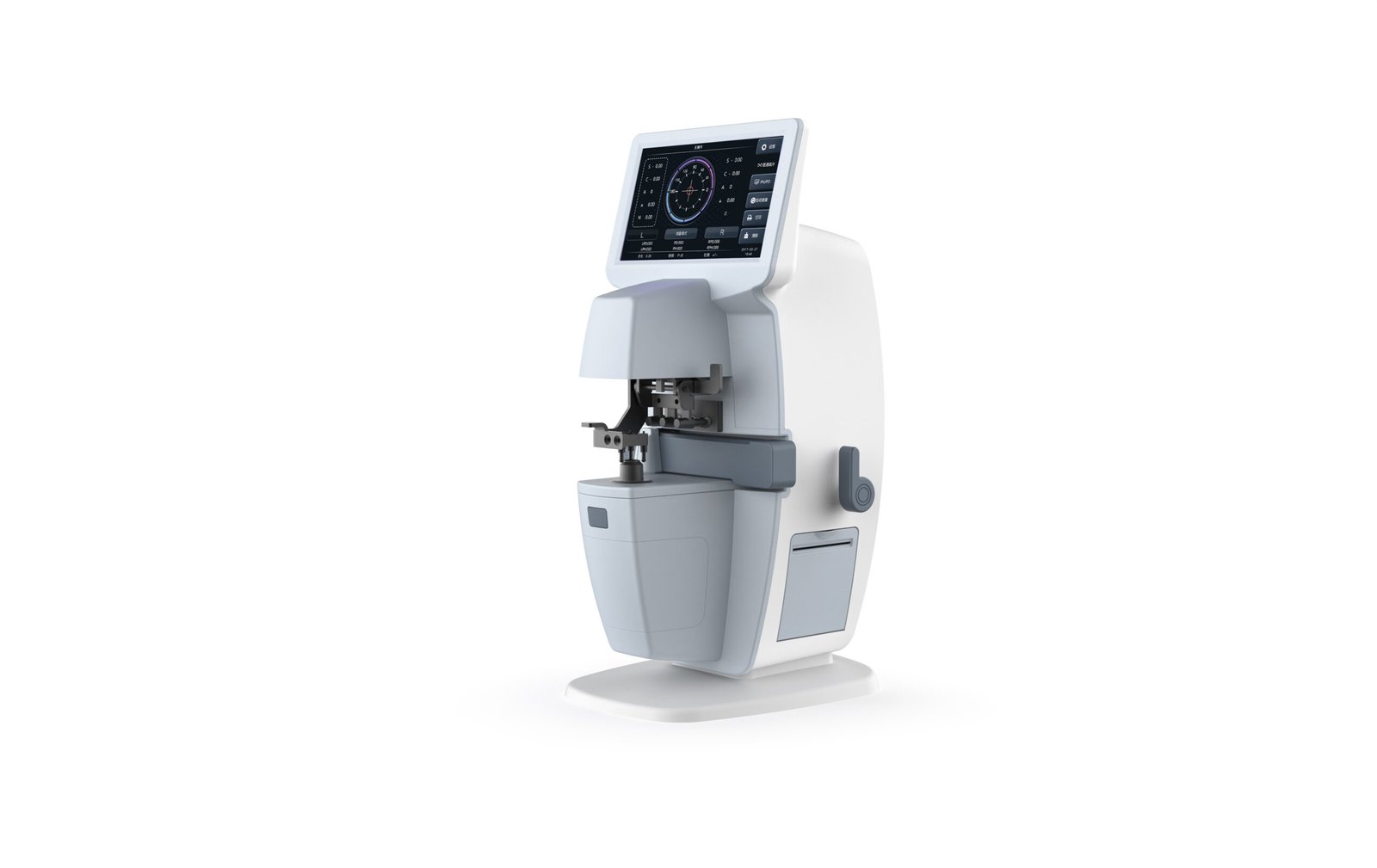

Auto Lensmeter LP-6100/LP-6100J
Automatic identification of lens type It supports the automatic judgment oflens type and can automatically identify single light/progressive multifocal lens and other types of lens.Green LED light source When measuring different refractive index lenses, it does not need to set Abbe coefficient compensation, and the operation is simple.
Hartman measurement method
The optical system of multi-point area measurement is fast, accurate and reliable.
7inch high definition capacitance touch screen, sensitive response.
Multilingual one-key switching(Chinese, English, Russian, Arabic, Spanish, French).
External power adapter, convenient and safe.
