| Range of Measurement |
|---|
| Sphere | -25D ~ +25D (0.01/0.12/0.25D steps) |
|---|
| Cylinder | -9.99D ~ +9.99D (0.01/0.12/0.25D steps) |
|---|
| Axis | 0° ~ 180° (1° steps) |
|---|
| ADD | -9.99D ~ +9.99D (0.01/0.12/0.25D steps) |
|---|
| Prism Degree | 0△ ~ 15△ (0.01/0.12/0.25△ steps) |
|---|
| Measurement Mode |
|---|
| Cylinder Form | +, -, mixed |
|---|
| Prism | X-Y, P-B |
|---|
| Contact Lens | Hard or soft |
|---|
| Measuring Mode | Single / Progressive / Auto recognition |
|---|
| Others |
|---|
| Diameter of Lens | Φ20 ~ Φ108 mm |
|---|
| PD | 40 mm ~ 90 mm (0.5 mm steps) |
|---|
| Speed of Measurement | 0.1 s |
|---|
| Display | TFT LCD (5.6″) 640 × 480 |
|---|

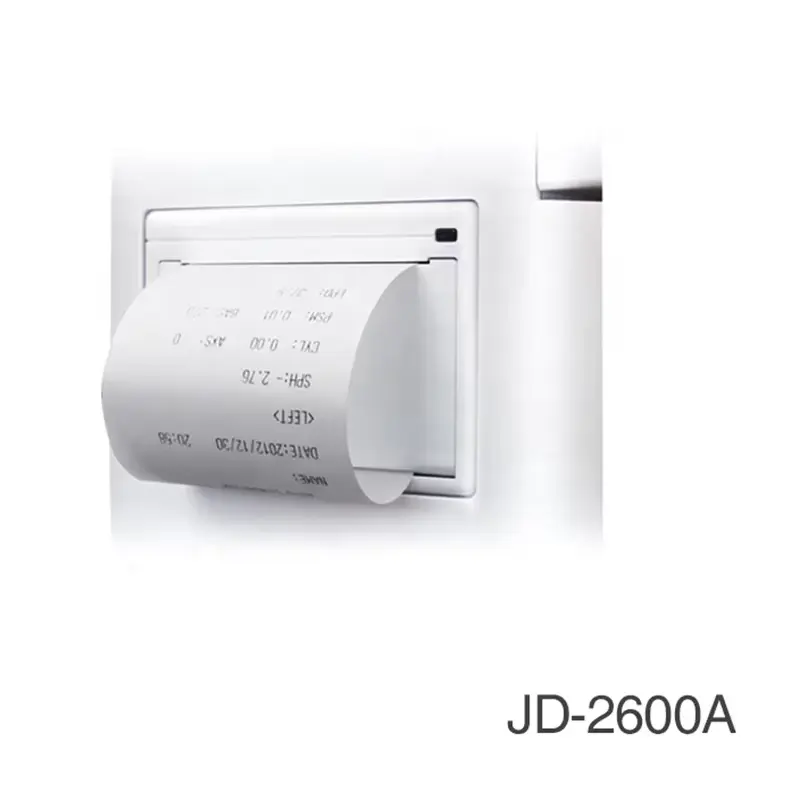

| Printer | Thermal Printer |
|---|
| Dimension | 222 (L) × 161 (W) × 372 (H) mm |
|---|
| Package | 390 (L) × 320 (W) × 515 (H) mm |
|---|
| Weight | 7 KGS |
|---|
| Power | AC100 ~ 240V 50 ~ 60Hz |
|---|
